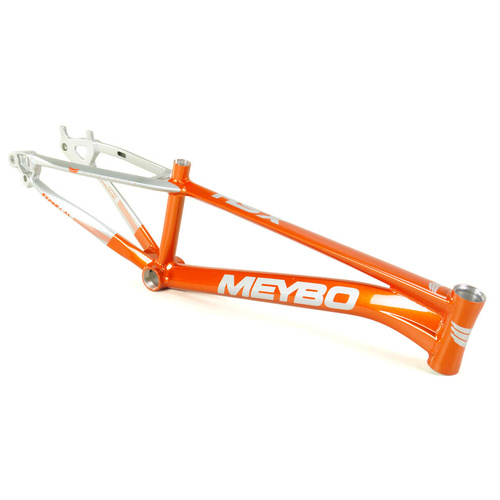

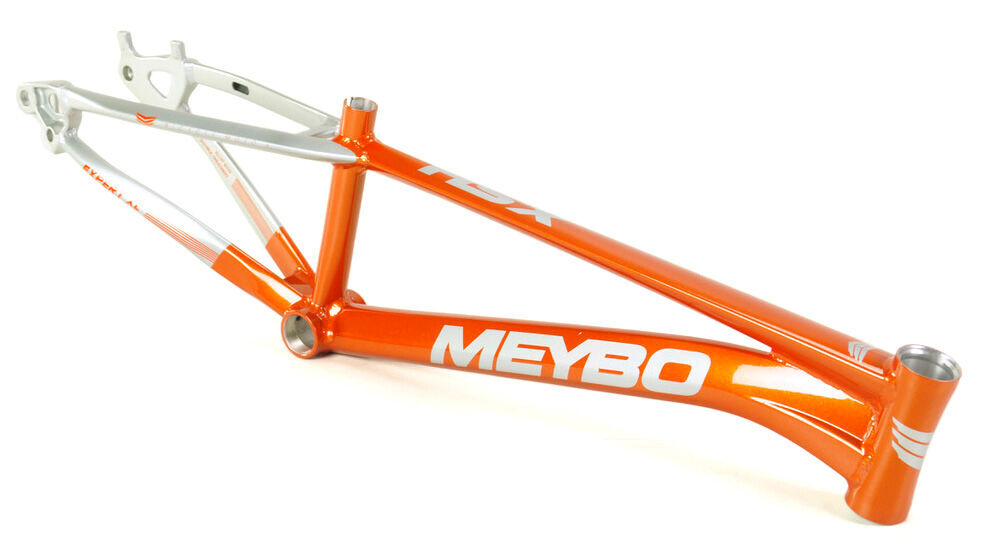

The revolutionary Meybo HSX frame is set to become one of the fastest frames at the race track. After 5 years in development; the World Cup winning Holeshot geometry is now available with all new factory features allowing for optimal power transmission and the ideal combination of stiffness and handling.
-
- Meybo HSX frame features include:
- Meybo fixed length chainstay with 15mm rear drop outs
- > Ensure you always have the same Chainstay length whatever gear you run
- > Easy; fast and straight mounting of your rear wheel
- > Disc brake directly mounted on the frame; no adaptor needed
- 6061 T-6 multiple butted hydroformed tubing
- Unique CNC Alloy / PE1000 Meybo chain tensioner system
- Supplied with 7005 CNC 15mm rear axle
- Disk brake only; no V-Brake mounts
- Uses 120mm disk
-
- Pro L frame geometry:
-
- Head Tube angle: 74º
- Top Tube length: 535mm / 21''
- Chainstay length: 369mm / 14.5''
- Head Tube size: Tapered 1 1/8'' - 1.5''
- Seat Post size: 27.2mm
- 15mm rear drop out
- BB30 bottom bracket
- Weight 1473g
SKU K2857
Brand Meybo
