Chase BMX started with the RSP 1.0 frame that Connor Fields rode from Day 1. Each time we updated the frame, we took the feedback from Connor, then Joris, and other Pro riders we sponsored. The RSP 5.0 is the culmination of the refinements and upgrades to make it our best Alloy frame ever.

The Chase RSP 5.0 Frames feature Tapered Headtube (Expert XL and above sizes), an Aero Seat Post tube, Enclosed Rear dropouts, Press Fit Bottom Brackets (Expert XL and Above), Triple and Double Butted tubes, Hydro and Muscle formed 7005 T6 Premium Ultralight tubing. RSP 5.0 Frames now feature a new internal cable routing from the Head Tube, through the Down Tube & Bottom Bracket, and exits out of the Chain Stay (Expert XL and Larger), and for the Mini – Expert, the cable exits out of the bottom of the down tube.

All Chase RSP 5.0 frames are Disc Brake only designed frames. The dropouts were restructured to offer better clearance for a wide array of disc brake calibers, improving the overall braking performance, and now compatible for both post and flat mount disc brake system (Disc Adapter kit sold separately).

The Chase RSP 5.0 Frame is now offered in a OS20 frame size option with refined geometry for riders wanting to use OS20 wheels, forks, and tires. OS20 uses the oversizes rims, tires, and forks to give larger riders a more comfortable ride as well as experience all the benefits of OS20.

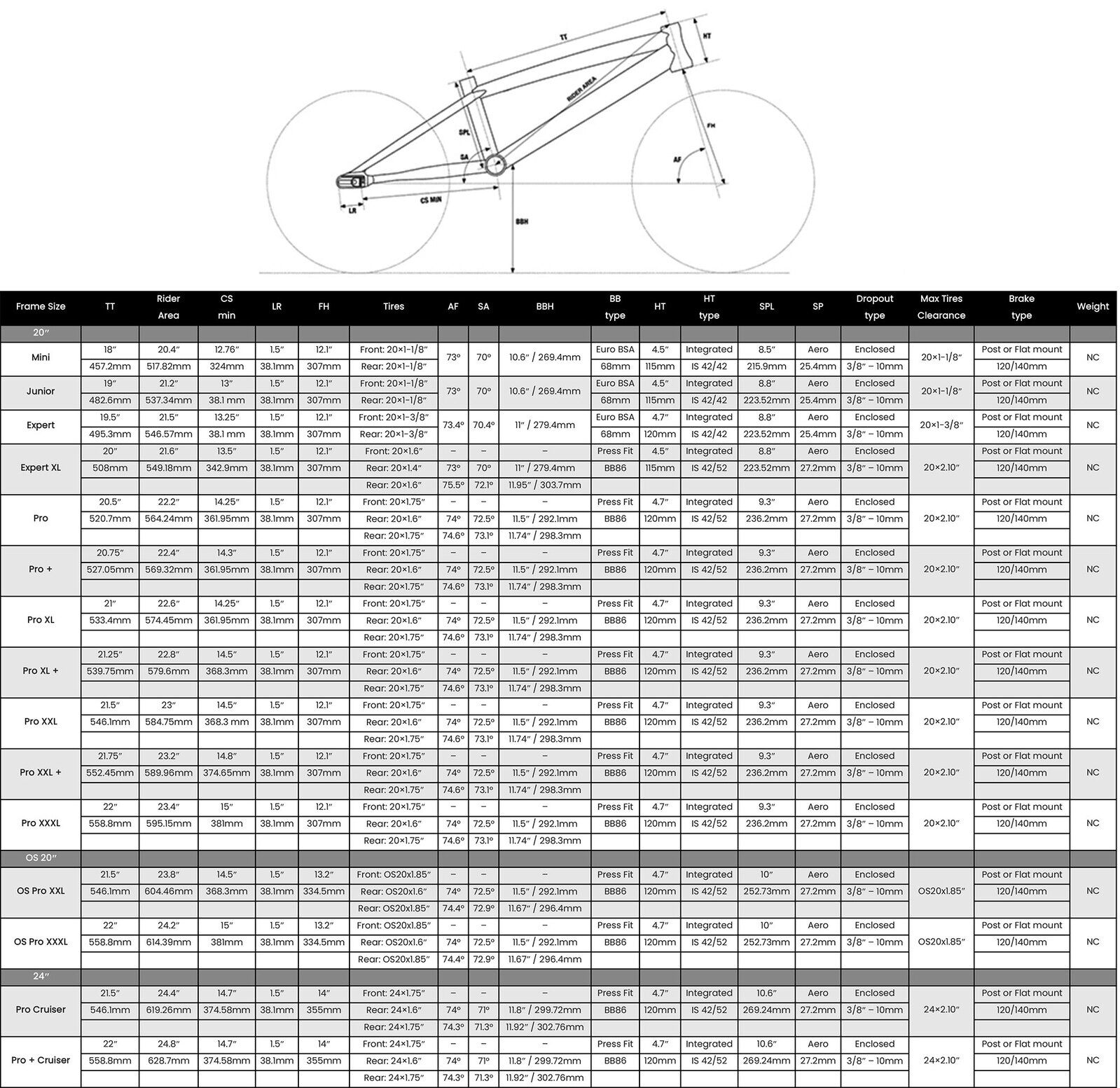

OFFERED IN 15 DIFFERENT SIZES WITH 2 NEW OS20 SIZES

11 OPTIONS IN 20″ FRAME SIZES:

Mini, Junior, Expert, Expert XL, Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+, Pro XXXL

2 OPTIONS IN OS20 FRAME SIZES:

Pro XXL and Pro XXXL

2 OPTIONS IN 24″ FRAME SIZES:

Pro and Pro+ Cruiser

INCLUDED WITH EACH FRAME:

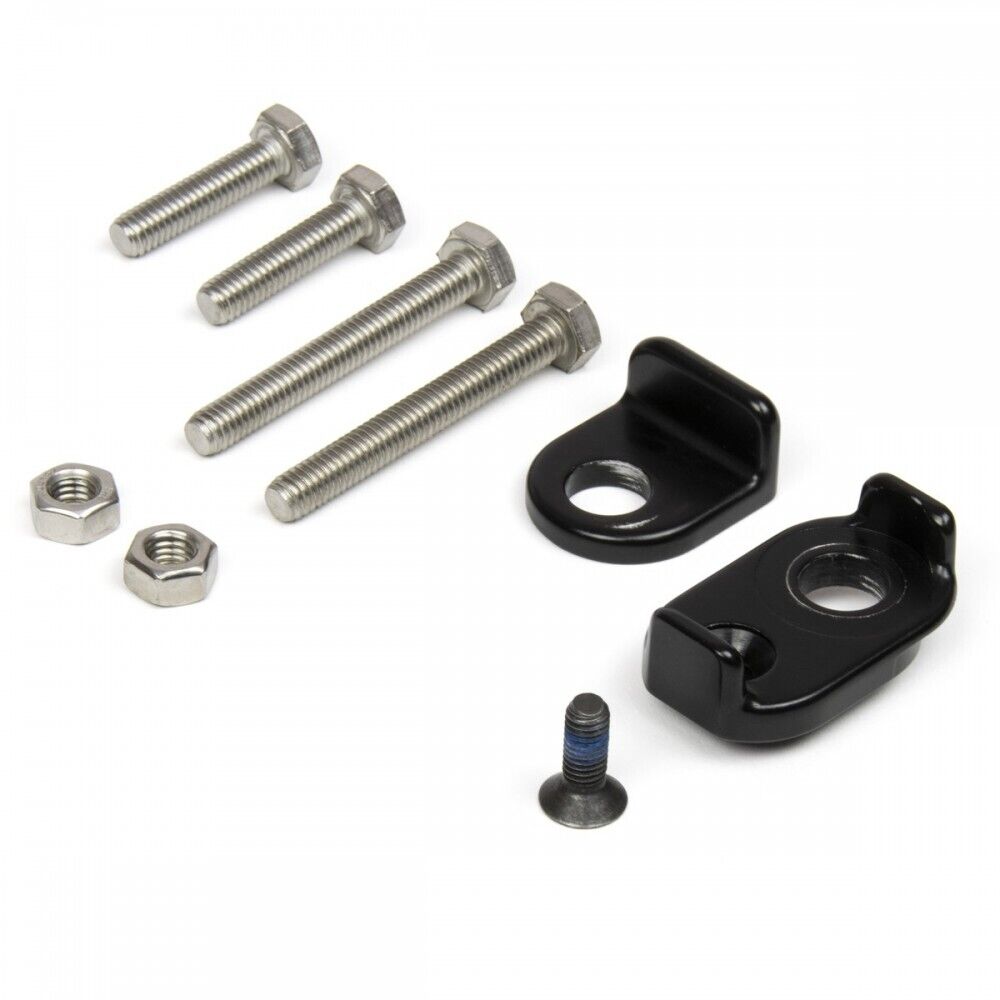

Chain Tensioner & Bolts, Housing damper foam
NOT INCLUDED AND SOLD SEPARATELY:
Aero Seat Post Clamp and Seat Post, Disc Brake Adapter

RSP 5.0 FRAMES ARE MADE EXCLUSIVELY FOR DISC BRAKING AND REQUIRE AN ADAPTER TO DO SO.

ELEVN Post mount and Flat mount Disc Brake adapters was designed to work correctly with the frames, but other brands may work.

RSP 5. 0 Mini-Expert sizes features integrated 1-1/8″ Headtube and Euro BSA bottom bracket.
RSP 5. 0 Expert XL and above sizes features Tapered 1-1/8″ – 1.5″ Headtube and Press Fit BB86 bottom bracket.

RSP 5.0 requires to use a rear hub that has removable axle bolts due to the enclosed rear dropouts.
RSP 5.0 OS20 Frames require a OS20 fork for correct frame geometry and front tire clearance.

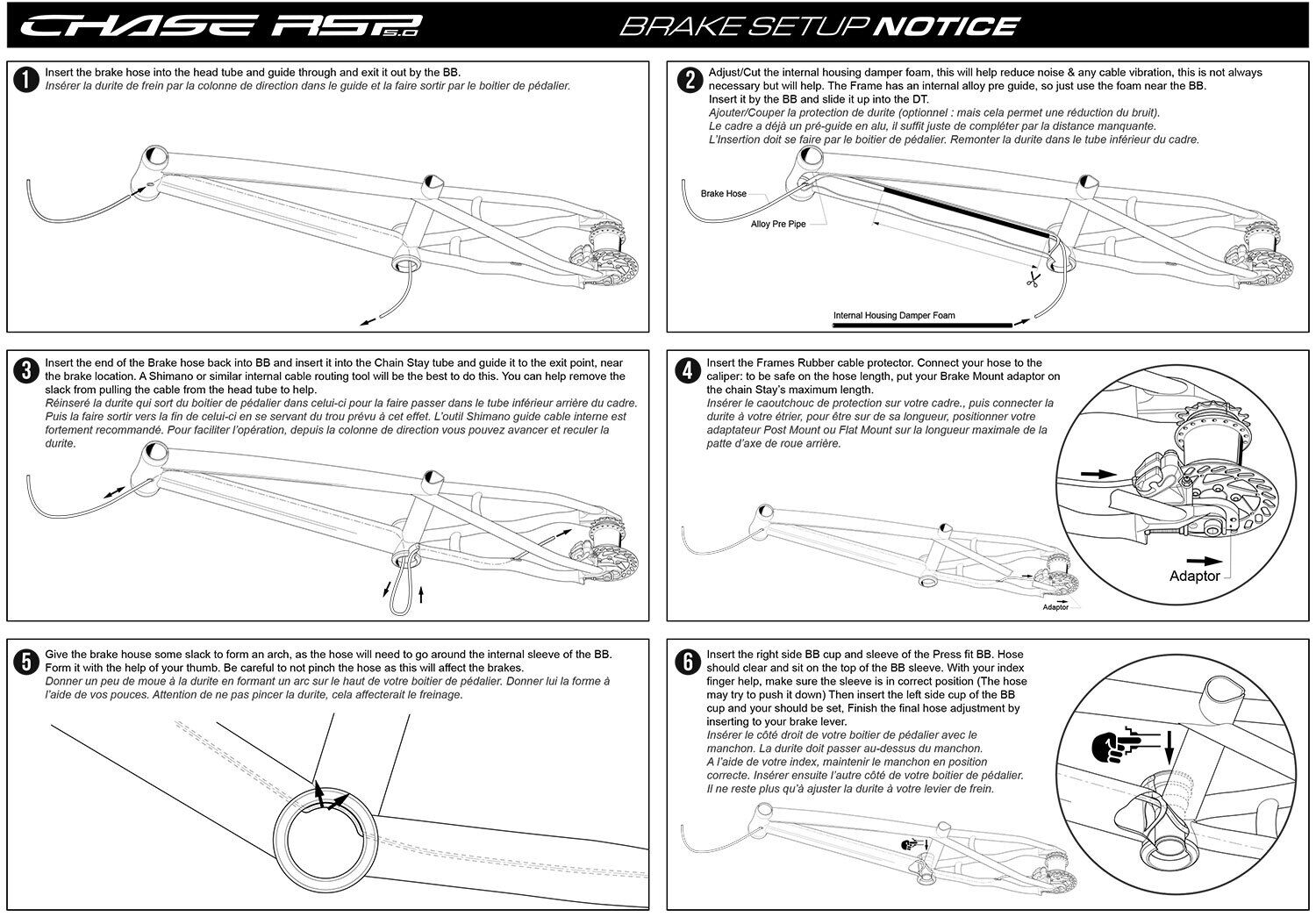

To dampen noise from your housing inside your frame’s internal cable routing, ELEVN offers internal housing specifically designed for all frame sizes.

SKU CHRSP5
Brand Chase BMX
